How-to: Creating and migrating Exact Globe Next database to Microsoft Azure
Introduction
Note: This document is only relevant to the controlled release participants.
As of product update 412 onwards, Exact Globe Next supports
Microsoft Azure SQL database, and it is compatible with Microsoft Azure SQL
database version 12.
You can create a database in the Microsoft Azure SQL server,
or migrate the existing database from the SQL server to the Microsoft Azure SQL
server.
Creating an Exact Globe Next database in the Microsoft Azure SQL server
To create the Exact Globe Next database in the Microsoft
Azure SQL server, do the following:
- Open Exact Globe
Next.
- Click at
the menu bar.

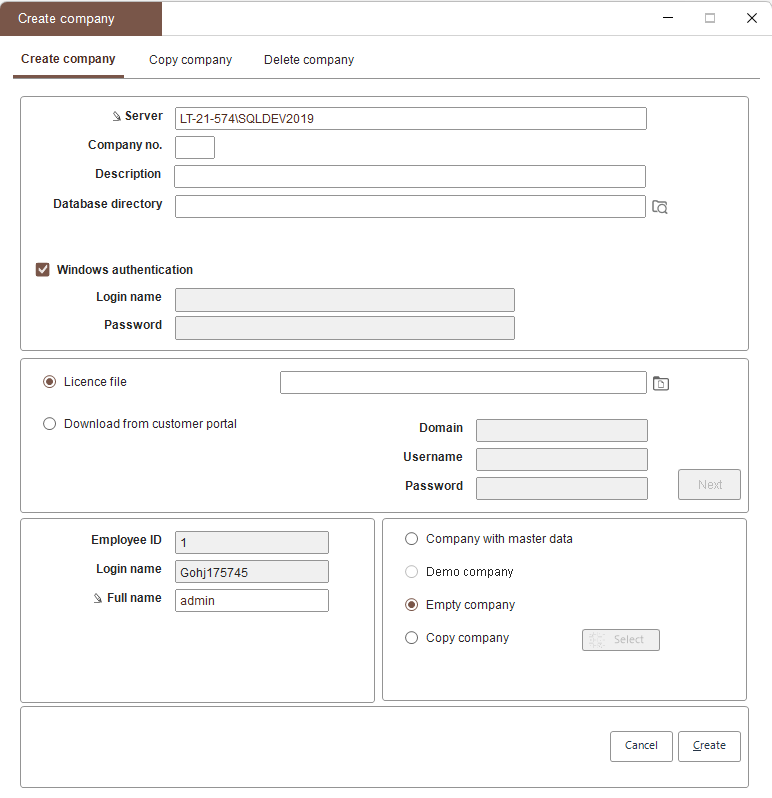

- Click System ➔ Create company. The following screen
will be displayed:
- In the Create
company wizard screen, select the Server option, and then type the
Microsoft Azure SQL server name.
- Clear the Windows
authentication check box.
- Type the
Microsoft Azure SQL server login name at Login name and password at Password.
Note: The following Exact Globe Next features are not
supported with the Microsoft Azure SQL database:
- Building blocks
- SDK
- Payroll module
- E-WMS
- Exact Globe Next with extended functionality
Migrating Exact Globe Next database from the SQL server to the Microsoft
Azure SQL server
There are several steps to migrate the Exact Globe Next database
from the SQL server to the Microsoft Azure SQL server, such as the following:
- Changing the Exact Globe Next connection to use the SQL server
authentication.
- Deleting the Yukon user from the Exact Globe Next database.
- Deploying the database to the Microsoft Azure SQL database.
- Restoring the migrated Exact Globe Next company in the Microsoft
Azure environment.
- Changing the password for the migrated Exact Globe Next database
(Microsoft Azure SQL database). This is optional.
Changing the Exact Globe Next connection to use the SQL server
authentication

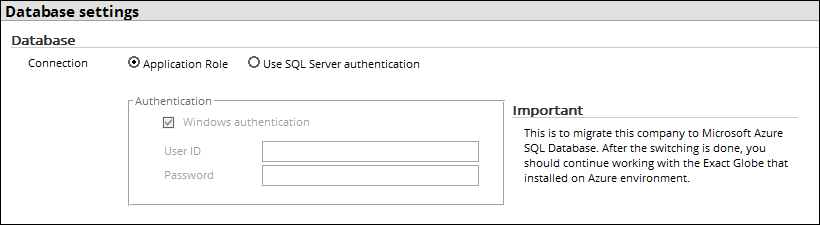

When the current company is an on-premise SQL server
database, the Connection field and Authentication section are
displayed. By default, Application Role is selected at Connection.
To migrate this company to a Microsoft Azure SQL database,
the option Use SQL Server authentication has to be selected. When Use
SQL Server authentication is selected, the fields in the Authentication section
will be enabled. By default, the Windows authentication check box is
selected and the user account currently logged on to Windows, will be used to
migrate this company to a Microsoft Azure SQL database.
If you want to use another user account, clear the Windows
authentication check box, and define the user’s credentials at the User
ID and Password fields. The user must be an existing user on the
on-premise SQL server with the Public, Serveradmin, and Sysadmin
server roles.

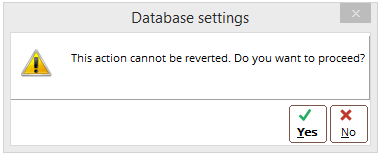

When saving the settings, the message “This action cannot be
reverted. Do you want to proceed?” will be displayed.
To continue migrating the database, click Yes. The
system will then perform a validation on the server roles. If the user does not
have the Public, Serveradmin, and Sysadmin server roles on
the on-premise SQL server, the message “You have insufficient rights to perform
this operation.” will be displayed.
If the user has the mentioned roles, the message “Changes
will only take effect after restarting the software” will be displayed.
After restarting Exact Globe Next, the settings in Database
settings cannot be edited anymore.
If you run Exact Globe Next with administrative rights, the
system will create a CloudDB file and store it in the Exact Globe Next
installation folder. Otherwise, the file will be created in the C:\Users\<UserName>\AppData\Local\VirtualStore\Program
Files (x86)\Exact Software folder and has to be copied manually to the Exact
Globe Next installation folder.
If there are table owners transferred for Exact Schemas, a
log file will be created in the Exact Globe installation \ usr folder.
Once switched to the Use SQL Server authentication connection
mode, you cannot switch back to the Application Role connection. You can
continue using Exact Globe Next after restarting Exact Globe Next.
This feature is for updating an existing on-premise Exact
Globe Next company database to be Microsoft Azure SQL database compatible. You
have to manually upload the updated company database from on-premise to
Microsoft Azure SQL server.
After this is done, you should access the company via
virtualization technology (Azure VM Remote Desktop Connection or Azure
RemoteApp). You should no longer use an on-premise local installation of Exact
Globe Next to access the company.
Deleting the Yukon user from the Exact Globe Next database
After you have changed the Exact Globe Next database
connection to the SQL server authentication, do the following:

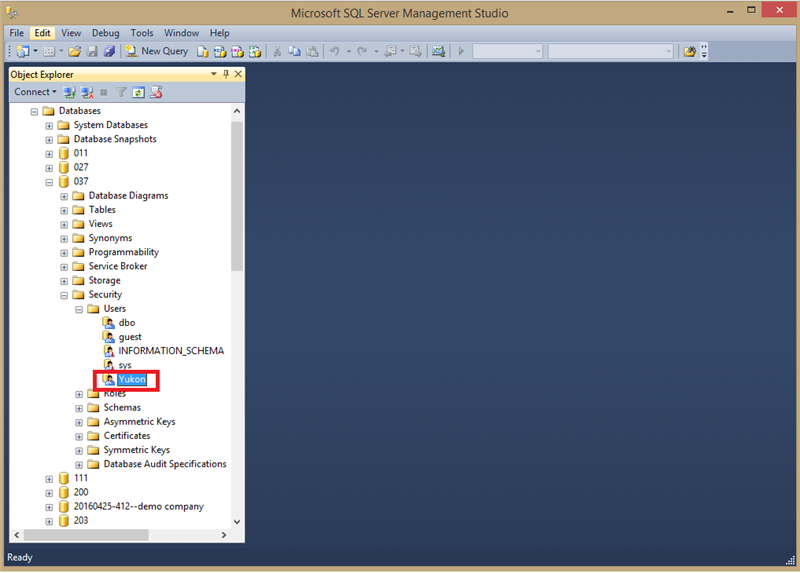

- Go to Microsoft
SQL Server Management Studio.
- Connect to the
on-premise SQL server.
- Expand the Exact
Globe Next database.
- Expand the Security ➔ Users folder.
- Delete Yukon.
Deploying the database to the Microsoft Azure SQL database
To deploy the database to the Microsoft Azure SQL database,
do the following:

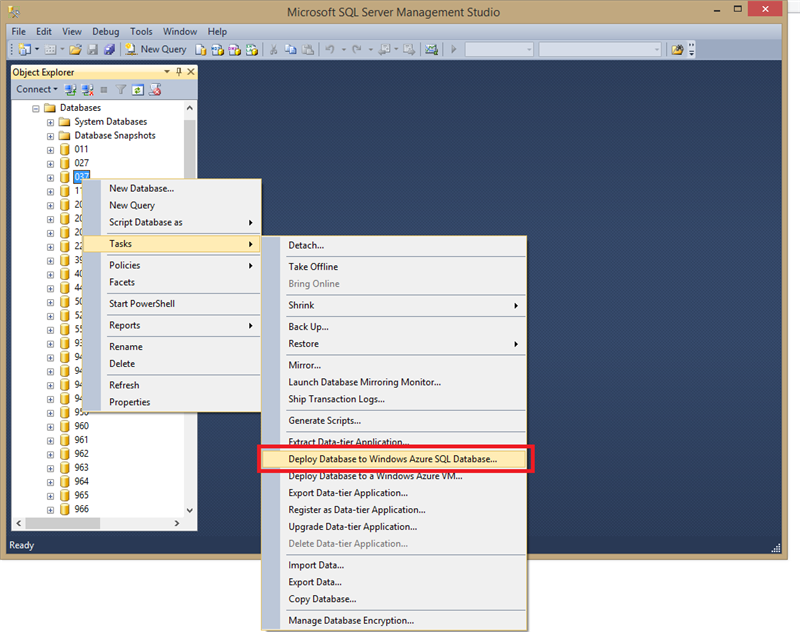

- Go to Microsoft
SQL Server Management Studio.
- Select the Exact
Globe Next database, and then right-click on the Exact Globe Next database.
- Click Tasks,
and then click Deploy Database to Windows Azure SQL Database.

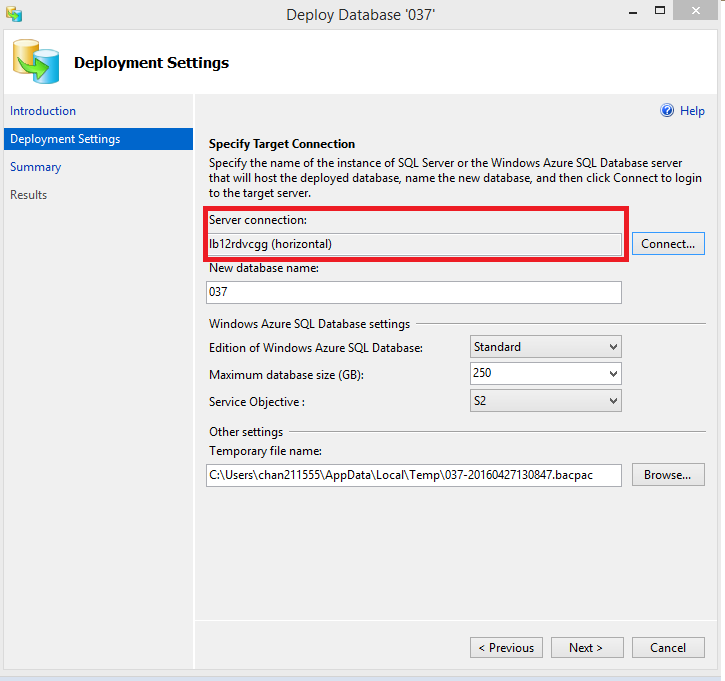

- The Deploy
Database screen will be displayed.
- Click Next,
and then connect the Microsoft Azure SQL database server.
- Click Next,
and the summary screen will be displayed.
- Click Finish
to start the migration. Once the wizard is successfully completed, connect to
the Microsoft Azure SQL server, and view the copied database.
Restoring the migrated Exact Globe Next company in the Microsoft Azure
environment
To restore the migrated Microsoft Azure SQL database in
Exact Globe Next, do the following:
- Click at
the menu bar.
- Click System ➔ Backup/Restore/Copy company. For more
information, see How-to: Setting up a Microsoft Azure SQL database.
Changing the password for the migrated Exact Globe Next database (Microsoft
Azure SQL database)

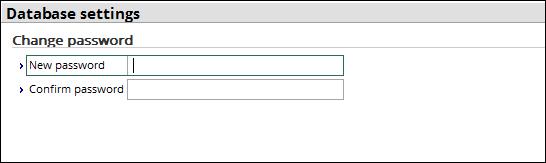

You can change the password for the Microsoft Azure SQL
database. When the current company is a Microsoft Azure SQL database, the Change
password section is displayed.
Here, the user can change the password for the Microsoft
Azure SQL database. When the entered password does not adhere to the password
policy, the message “Password not according to Microsoft SQL Server password
policy” will be displayed. When the passwords entered at New password
and Confirm password do not match, the message “Incorrect password” will
be displayed.
If the entered password is valid, the message “Changes will
only take effect after restarting the software” will be displayed.
